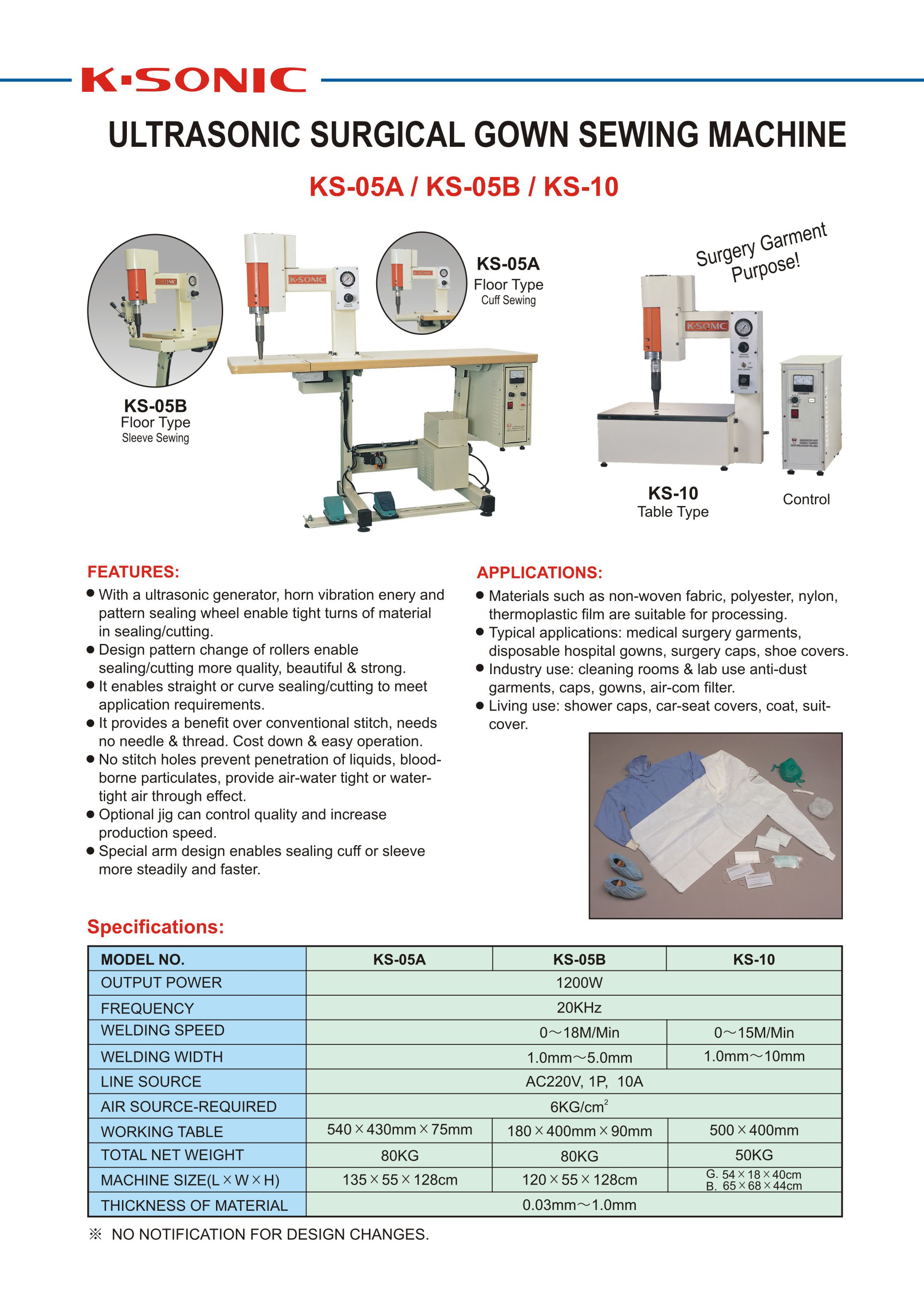

Ultrasonic Surgical Garment Sewing Machine KS05 KS10

With an ultrasonic generator, horn vibration energy and pattern sealing wheel enable light turns of material in sealing/cutting.
Design pattern change of rollers enables sealing/cutting more quality, beautiful & strong.
Enables straight or curve sealing/cutting to meet application requirements.
Replaces & benefits over conventional stitch, needs no needle & thread. Cost down & easy operation.
No stitches prevent penetration of liquids, blood-borne particulates, provide air-water tight or water-tight barrier effect.
Optional jig can control quality and increase production speed.

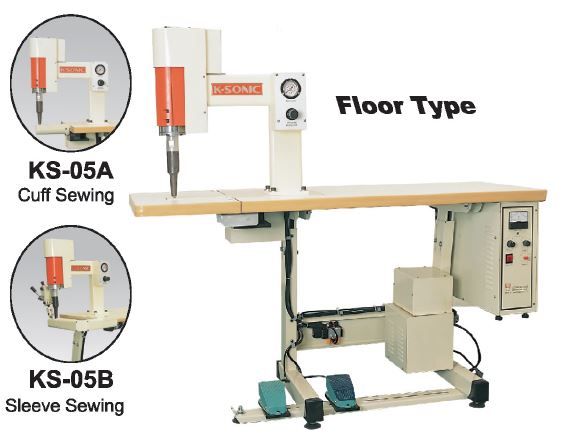

Special arm design enables sealing cuff or sleeve more steadily and faster.

Materials such as non-woven fabric, polyester, nylon, thermoplastic film are suitable for processing.
Typical applications: medical surgery garments, disposable hospital gowns, surgery caps, shoe covers.
Industry use: cleanroom & laboratory use anti-dust garments, caps, gowns, air-com filter.
Living use: shower caps, car-seat covers, coat, suit-cover.

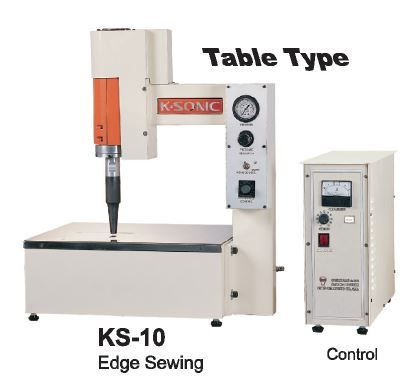

MODEL NO.	KS-05A	KS-05B	KS-10
OUTPUT POWER	1200W	1200W	1200W
FREQUENCY / ULTRASONIC SYSTEM	20KHz Continue Vibration	20KHz Continue Vibration	20KHz Continue Vibration
WELDING SPEED	0~18 m/min.	0~18 m/min.	0~15 m/min.
WELDING WIDTH	1.0 mm ~ 5.0 mm	1.0 mm ~ 10.0 mm	1.0 mm ~ 10.0 mm
LINE SOURCE	AC220V, 1P, 10A	AC220V, 1P, 10A	AC220V, 1P, 10A
AIR SOURCE REQUIRED	6 kg/cm²	6 kg/cm²	6 kg/cm²
WORKING TABLE	54 x 43 cm (Φ75mm)	18 x 40 cm (Φ90mm)	50 x 40 cm
NET WEIGHT	80 kg	50 kg	80 kg
MACHINE SIZE	135 x 64 x 127 cm	120 x 54 x 127 cm	Machine: 66 x 89 x 44 cm Control: 54 x 184 x 40 cm
THICKNESS OF MATERIAL	0.03 mm ~ 1.0 mm	0.03 mm ~ 1.0 mm	0.03 mm ~ 1.0 mm
